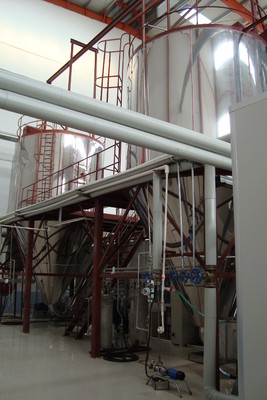

SUS304 High Speed Centrifugal Spray Dryer Rotary Atomizer Rotary Spray Dryer 25kg/H
| Place of Origin | China |
|---|---|
| Brand Name | TIANYANG |
| Model Number | LT-Series |
| Minimum Order Quantity | one |
| Delivery Time | 30 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Spray Drying Equipment | Spray Type | High Speed Centrifugal Atomizer |
|---|---|---|---|
| Warranty | One Year | Applications | Medicine Processing, Biological, Food, Medicine, Etc. |
| Drying Time | According To Customer Requirements. | Max. Water Evaporation Capacity | 5-3000kg/h |
| Voltage | 110V220V/380V/440V/Customization | Power | 3-75kw |
| Dimension(L*W*H) | Variable | Core Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine |
| Material | SUS304, SUS304L, SUS316, SUS316L, Ti, Other, SS304 And 316L | Use Purpose | Lab Or Pilot |
| Atomizer | Centrifugal Atomizer | Heating Sources (Option) | Oil, Natural Gas, Coal Gas, Liquefied Gas, Marsh Gas, Coalmine, Steam, Electricity, Etc. |
| Inlet Temperature (℃） | 140-350 ℃ | Out Temperature (℃） | 80-90 ℃ |
| Rotating Speed | 11800-25000rpm | Spray Disc Diameter (mm) | 60 120 150 180 210 |
| High Light | SUS304 High Speed Centrifugal Spray Dryer,Centrifugal Spray Dryer 25kg/H,Rotary Spray Dryer |
||
Product Description
High Speed Centrifugal Spray Drying Machine For Powder
Product Description
Product Description:
Spray drying is the widest used technology in the liquid shaping technology and in the drying industry. Centrifugal Atomizing (Spray) Drying Equipment is most suitable for producing powder, particles or solid block products from materials of solution, emulsion, soliquoid and pumpable paste states. Therefore, spray drying is useful to create the desired particle size, residual water contents, the stocking density, and the particle shape needed to meet precise standards.
Manufacturing and Applications
The air is through the filter and heater, the air distributor which enters the dedicator top, the hot air takes the form of spiral and enters the dedicator evenly. The material liquid , from the material liquid trough from the at odds with the community or the leadership atomizer for the dedicator top of pump sending through the filter, make the material liquid gush out into an extremely small calorific drop, material liquid and hot air flow and keep in touch, moisture evaporate rapidly, within extremely short time dry to become finished product, finished product discharge by dry tower bottom and whirlwind separator, the waste gas is discharged by the air blower.
Features
1.High speed drying. 95%-98% of moisture will be evaporated in high temperature airflow in a flash, only needs seconds time.
2.Adopts Single position spray drying to make the liquid drop and hot air running in same position. This is machine is also fit for the materials which are sensitive with Heating.
3.Because the drying is processed in a flash, so the finished product is Ball Shape with good mobility and good solubility.
4.The machine is Simple production with easy operation control system used for drying 50-80% moisture contained materials, even some special material with 90% moisture contained can be dried in a flash to powder.
5.All contact parts are made in SS304.
On the basis of introducing foreign advanced drying technology, Wuxi Tianyang Drying Equipment Co., Ltd. cooperates closely with many domestic scientific research institutes to develop and produce various types of domestic leading high speed centrifugal spray drying equipment by itself.
The LT series high speed centrifugal spray drying machine for powder produced by our company has passed the appraisal of new products in Jiangsu Province, China. It is a drying equipment specially introduced by the Product Quality Inspection Center. It is also a special equipment company designated by the Ministry of Chemical Industry to manufacture high-speed centrifugal spray dryers.
Working Principle
The working principle of LT series high speed centrifugal spray drying machine for powder is that after the air enters the heating device through the filter, it enters the hot air distributor at the top of the drying chamber, and the hot air passing through the hot air distributor enters the drying chamber evenly and rotates in a rotating manner. At the same time, the material liquid is sent to the high-speed centrifugal atomizer at the top of the drying chamber, and the material liquid is atomized into extremely small mist droplets by the centrifugal atomization disc. It can be dried into powdered granules in a short period of time, that is finished products.
Main Features
* Drying speed is quickly.
* The final product quality is better.
* The product has good dispersibility, fluidity and solubility.
* The production process is simple and the operation and control are convenient.
* Air jacket cooling system is used on the drying chamber wall and roof to prevent the material from being melted and hung on the wall.
* The inner wall of the drying chamber adopts an air rotary purging system to reduce the phenomenon of sticking to the wall.
* According to user requirements, the products can meet the requirements of GMP national standards.
Technical Parameter
| Model | LT Series High Speed Centrifugal Spray Drying Machine | |||||||||||||
| Max. Water Evaporation Capacity (kg/h) | 5 | 25 | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 | 1000 | 1200 | 2000 | 3000 |
| Inlet Temperature (℃) | 140-350 ℃ | |||||||||||||
| Out Temperature (℃) | 80-90 ℃ | |||||||||||||
| Spray Type | High Speed Centrifugal Atomizer | |||||||||||||
| Atomization Rotated Speed (RPM) | 25000 | 18000-22000 | 15000-22000 | 12700 | 11800 | |||||||||
| Spray Disc Diameter (mm) | 60 | 120 | 150 | 180 | 210 | |||||||||
| Heating Sources (Option) | Oil, natural gas, coal gas, liquefied gas, marsh gas, coalmine, steam, electricity, etc. | |||||||||||||
Remarks: Water evaporation capacity depends material property, solidcontent, warmairinlet & outlet temperature.
