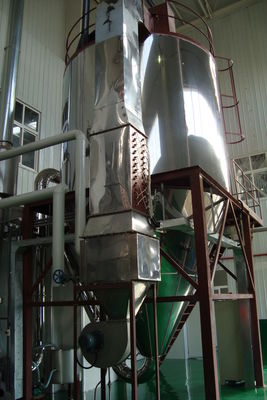

Centrifugal Spray Drying Machine For Sale Powder Simple Atomization Atomizer 150KG/H
| Place of Origin | China |
|---|---|
| Brand Name | TIANYANG |
| Model Number | LT-Series |
| Minimum Order Quantity | one |
| Delivery Time | 30 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Spray Drying Equipment | Spray Type | High Speed Centrifugal Atomizer |
|---|---|---|---|
| Warranty | One Year | Applications | Medicine Processing, Biological, Food, Medicine, Etc. |
| Drying Time | According To Customer Requirements. | Max. Water Evaporation Capacity | 5-3000kg/h |
| Voltage | 110V220V/380V/440V/Customization | Power | 3-75kw |
| Dimension(L*W*H) | Variable | Core Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine |
| Material | SUS304, SUS304L, SUS316, SUS316L, Ti, Other, SS304 And 316L | Use Purpose | Lab Or Pilot |
| Atomizer | Centrifugal Atomizer | Heating Sources (Option) | Oil, Natural Gas, Coal Gas, Liquefied Gas, Marsh Gas, Coalmine, Steam, Electricity, Etc. |
| Inlet Temperature (℃） | 140-350 ℃ | Out Temperature (℃） | 80-90 ℃ |
| Rotating Speed | 11800-25000rpm | Spray Disc Diameter (mm) | 60 120 150 180 210 |
| High Light | centrifugal spray drying machine 150KG/H,spray dryer machine,spray drying machine for sale |
||
Product Description
High Speed Centrifugal Spray Drying Machine For Powder
Product Description
High speed drying:the surface area of liquid material is greatly increased after atomization, achieving instantaneous evaporation of 95% -98% water in the hot air flow, drying time only takes a few seconds, especially for heat-sensitive materials
Products achieve good uniformity, mobility and solubility, and also achieve purity, good quality. The production process is simplified and the operation control is convenient. For liquid materials with the moisture content of 40-60% (special materials up to 90%) can be dried into powder products just with one time, do not need grinding and screening after drying, reduce production processes and improve product purity. The product size, bulk density, moisture, in a certain range can be adjusted by changing operating conditions, control and management are very convenient.
The air is filtered and heated into the top air distributor of the dryer, and the hot air enters the drying chamber evenly in a spiral fashion. The material liquid is sprayed into a fine atomized liquid droplet through the high-speed centrifugal nebulizer at the top of the tower body, and can be contacted with the hot air in a very short time and can be dried into finished products. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is drained by the draft fan.
On the basis of introducing foreign advanced drying technology, Wuxi Tianyang Drying Equipment Co., Ltd. cooperates closely with many domestic scientific research institutes to develop and produce various types of domestic leading high speed centrifugal spray drying equipment by itself.
The LT series high speed centrifugal spray drying machine for powder produced by our company has passed the appraisal of new products in Jiangsu Province, China. It is a drying equipment specially introduced by the Product Quality Inspection Center. It is also a special equipment company designated by the Ministry of Chemical Industry to manufacture high-speed centrifugal spray dryers.
Working Principle
The working principle of LT series high speed centrifugal spray drying machine for powder is that after the air enters the heating device through the filter, it enters the hot air distributor at the top of the drying chamber, and the hot air passing through the hot air distributor enters the drying chamber evenly and rotates in a rotating manner. At the same time, the material liquid is sent to the high-speed centrifugal atomizer at the top of the drying chamber, and the material liquid is atomized into extremely small mist droplets by the centrifugal atomization disc. It can be dried into powdered granules in a short period of time, that is finished products.
Main Features
* Drying speed is quickly.
* The final product quality is better.
* The product has good dispersibility, fluidity and solubility.
* The production process is simple and the operation and control are convenient.
* Air jacket cooling system is used on the drying chamber wall and roof to prevent the material from being melted and hung on the wall.
* The inner wall of the drying chamber adopts an air rotary purging system to reduce the phenomenon of sticking to the wall.
* According to user requirements, the products can meet the requirements of GMP national standards.
Technical Parameter
| Model | LT Series High Speed Centrifugal Spray Drying Machine | |||||||||||||
| Max. Water Evaporation Capacity (kg/h) | 5 | 25 | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 | 1000 | 1200 | 2000 | 3000 |
| Inlet Temperature (℃) | 140-350 ℃ | |||||||||||||
| Out Temperature (℃) | 80-90 ℃ | |||||||||||||
| Spray Type | High Speed Centrifugal Atomizer | |||||||||||||
| Atomization Rotated Speed (RPM) | 25000 | 18000-22000 | 15000-22000 | 12700 | 11800 | |||||||||
| Spray Disc Diameter (mm) | 60 | 120 | 150 | 180 | 210 | |||||||||
| Heating Sources (Option) | Oil, natural gas, coal gas, liquefied gas, marsh gas, coalmine, steam, electricity, etc. | |||||||||||||
Remarks: Water evaporation capacity depends material property, solidcontent, warmairinlet & outlet temperature.
