Food High Speed Centrifugal Spray Dryer Machine For Milk Powder Industrial

Place of Origin China
Brand Name TIANYANG
Model Number LT-5 LT-25 LT-50 LT-150 LT300-2000
Minimum Order Quantity one
Delivery Time 30 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Spray Drying Equipment Spray Type High Speed Centrifugal Atomizer
Warranty 1 Year Applications Medicine Processing, Biological, Food, Medicine, Etc.
Drying Time According To Customer Requirements. Max. Water Evaporation Capacity 5 25 50 150 300-2000
Transmission Form Of Centrifugal Spray Head Compressed Air Drive /Mechanical Transmission Rotating Speed 15000-25000rpm
Spray Disc Diameter (mm) 50 102 108 150 180-340 Heating Sources (Option) Electricity/Electricity + Steam, Fuel Oil, Gas Electricity + Steam, Fuel Oil, Gas / Up To The User
Electric Heating Maximum Power (KW) 12 45 81 99 Customized Voltage 110V220V/380V/440V/Customization
Dimensions (L×W×H) M 1.8×0.93×2.2m 3×2.7×4.26m 3.7×3.2×5.1m 5.5×4.5×7m Customized Dry Powder Recovery ≥95%
Core Components Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine Material SUS304, SUS304L, SUS316, SUS316L, Ti, Other, SS304 And 316L
Use Purpose Lab Or Pilot
High Light

Food High Speed Centrifugal Spray Dryer

,

spray dryer machine for milk powder

,

Centrifugal Spray Dryer Machinery

Leave a Message
Product Description

3.LT High Speed Centrifugal Spray Drying Equipment





Product Description





Name: Observation door
The main tower adopts the quick-open cleaning door,
the clean-up door adopts the integral design, and is
optimized on the manhole design of the Danish Nile
spray tower, and our company has applied for a new
practical patent (patent number: 201320350821.9)
Door operation is simple and convenient, while
ensuring absolute sealing, to ensure that the manhole
wall will not keep the material which properly prevent
contamination.

Name: Dehumidifier
The dehumidifier refrigerant could insert 25
degree coolant air, and combines with 85
degree output powders. Use pneumatic con-
veying Which could properly prevent the final
ingredients softening and re-wetting caused
conglomerate, and could guarantee the extract
fragrency and quality.
Report Su


Name: Inlet air spiral air distributor
Unique inlet air spiral air distributor, this device
is our company's patent (patent number:
201320354456.9), can guarantee on the cir-
cumference of the tower body, air volume
down absolutely uniform, avoid wall material
viscosity on the internal chamber surface.

Name: Sprial Rotating Discharge material
The material spiral rotating discharge by air
t
volume, and generate negative pressure and
siphon off the material which could properly
prevent the congestion of powder.



LT high speed centrifugal spray drying equipment is a kind of drying process equipment. It can make the materials of solution, emulsion, suspension and paste liquid into dry powder, fine and medium particle products through spray drying. It has fast drying speed, high efficiency, few processes, and saves manpower.



LT series high speed centrifugal spray drying equipment is especially suitable for heat-sensitive materials, which is beneficial to increase the output and obtain good process technology and economic benefits. Widely used in fine chemicals, ceramic materials, food, biology, Chinese and Western medicine, environmental protection and other industries.

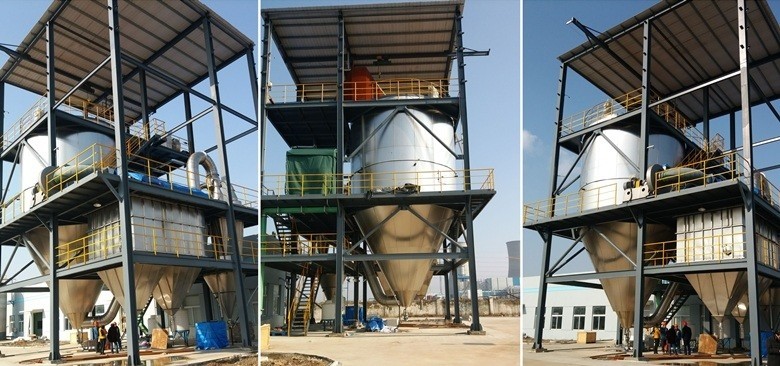

Food High Speed Centrifugal Spray Dryer Machine For Milk Powder Industrial 0



Main Technical Parameter

Model LT-5 LT-25 LT-50 LT-150 LT300-2000
Inlet Temperature (℃) 140-350 ℃ 140-350 ℃ 140-350 ℃ 140-350 ℃ 140-350 ℃
Out Temperature (℃) 80-90 ℃ 80-90 ℃ 80-90 ℃ 80-90 ℃ 80-90 ℃
Max. Water Evaporation Capacity (kg/h) 5 25 50 150 300-2000
Transmission Form of Centrifugal Spray Head Compressed air drive Mechanical transmission
Atomization Rotated Speed (RPM) 25000 22000 21500 18000 15000
Spray Disc Diameter (mm) 50 102 108 150 180-340
Heating Sources (Option) Electricity Electricity Electricity + steam, fuel oil, gas Electricity + steam, fuel oil, gas Up to the user
Electric Heating Maximum Power (KW) 12 45 81 99 Customized
Dimensions (L×W×H) m 1.8×0.93×2.2m 3×2.7×4.26m 3.7×3.2×5.1m 5.5×4.5×7m Customized
Dry Powder Recovery ≥95% ≥95% ≥95% ≥95% ≥95%

Remarks: Water evaporation capacity depends material property, solidcontent, warmairinlet & outlet temperature.



Features and Benefits

* Fast drying speed. When the material is atomized by the centrifugal atomizing disc, the surface area is greatly increased. In the high-temperature airflow, 95-98% of the water can be evaporated instantly, and the drying time is only a few seconds.



* The co-current spray drying method can make the droplets flow in the same direction as the hot air. Although the temperature of the hot air is high, because the hot air enters the drying chamber and immediately contacts the spray droplets, the indoor temperature drops sharply, so that the drying material is not overheated. , so it is also suitable for drying heat-sensitive materials.



* Wide range of use. According to the characteristics of the material, it can be dried with hot air or molded with cold air. A large number of products with very different characteristics can be produced by this drying equipment. The commonly used types include: biological fermentation, biological extraction, Chinese and Western medicines, polymers and resins, dyes, colors, ceramic materials, electronic materials , glass, rust remover, insecticides, carbohydrates, dairy and egg products, tannic acid, non-staple food in slaughterhouses, blood and fish products, detergents and surfactants, fertilizers, organic compounds class, inorganic compounds class.



* Since the drying process is completed in an instant, the particles of the product can basically keep the spherical shape of droplets, and the product has good dispersibility, fluidity and solubility.



* The production process is simplified and the operation is convenient. Spray drying is usually used for special materials with solid content of 10~70% and good fluidity, even if the moisture content is as high as 90%, it can be dried into powder products at one time. After most of the materials are spray-dried to collect finished products, there is no need for secondary drying, crushing and screening, which not only simplifies the production process, but also reduces the production process and ensures the purity of the finished product. The particle size, bulk density and water content of the product are within a certain range and can be adjusted by changing the operating conditions, and the sequence of production, management and operation is convenient.



* In order to prevent the material from being polluted and prolong the life of the equipment, all parts in contact with the material are made of SUS304 stainless steel on-off device.



Types of Dry Materials (Parts)

* Polymers and resins * Tannic acid
* Dyes, colors, pigments * Non-staple food, blood and fish products in slaughterhouses
* Ceramic materials, glass ceramic sand * Detergents and surface stains
* Rust remover fungicides insecticides * Ingredients
* Carbohydrates and similar products * Organic chemicals
* Dairy and eggs * Inorganic chemicals
* Food and plant extracts * Cellulose
* Chinese and Western medicines, biological fermentation products * By-products and other sundries, etc
