Lpg-25 High Pressure Spray Dryer In Ceramic Industry Centrifugal Drying Machine
| Place of Origin | China |
|---|---|
| Brand Name | TIANYANG |
| Model Number | LX-550 |
| Minimum Order Quantity | one |
| Delivery Time | 30 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Heat Sensitive Electronic Spray Drying Equipment | Material | SUS304, SUS316L |
|---|---|---|---|
| Max. Water Evaporation Capacity | 550kg/h | Heating Method | Electricity + Steam, Fuel Oil, Gas, Up To The User. Applications: Electronic Material, Ceramics, Magnetic Materials, New Energy Materials, New Metal Materials, Chemicals, Etc. |
| Applications | Ceramics, Magnetic Materials, New Energy Materials, New Metal Materials, Chemicals, Etc. | Warranty | 1 Year |
| Inlet Temperature (℃） | 230-350℃ | Out Temperature (℃） | 90-150℃ |
| Spray Type | High Speed Centrifugal Atomizer | Atomization Rotated Speed (RPM) | 0-18000 |
| Transmission Form Of Centrifugal Spray Head | Mechanical Transmission | Spray Disc Diameter (mm) | 70-80 |
| Voltage | 110V220V/380V/440V/Customization | Dry Powder Recovery | ≥95% |
| Electric Heating Maximum Power (KW) | Customized | Dimensions (L×W×H) Mm | Customized |
| Core Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine | Use Purpose | Lab Or Pilot |
| High Light | Lpg-25 High Pressure Spray Dryer,High Pressure spray dryer in ceramic industry,Lpg-25 Centrifugal Drying Machine |
||
Product Description
16.Electronic Materials Centrifugal Spray Granulation DryerProduct Description
Product Description
Pressure Spray Dryer is an apparatus that can finish drying and granulating at the same time. The needed ball granule with certain size and ratio can be gotten in accordance with requirements of process to adjust pressure, flow, and size of atomizing hole.
The working of this set is as follows: the liquid of raw material is pumped in through diaphragm pump. The liquid of raw material
be atomized into tiny droplets. Then it gathers with hot air and falls off. Most parts of powder material will be collected
through the outlet of discharged at the bottom. The wasted air and fine powder will be collected through collector at the bottom
of cyclone. At the outlet it can also be equipped with two grades of duster. Its ratio of recovery can be above 99%.

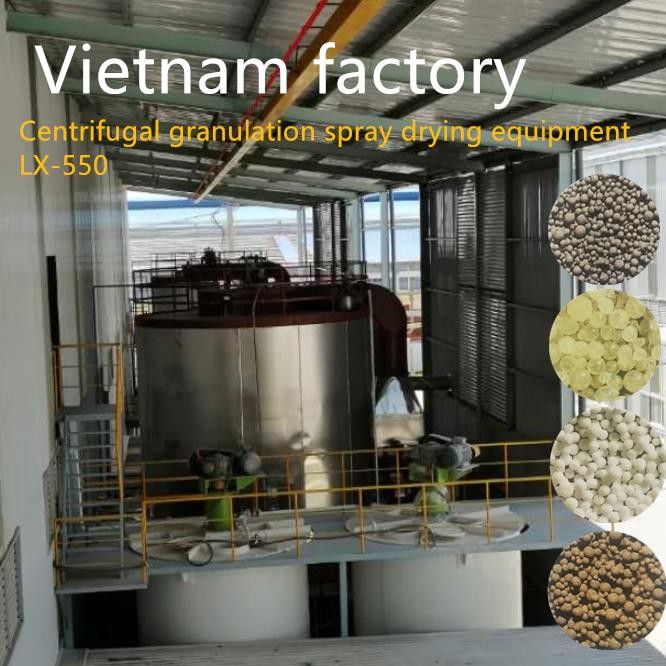

LX-Series heat sensitive electronic materials centrifugal spray granulation dryer is mainly higher solids content of the slurry through the high-speed centrifugal spray granulation, after the dried productcircular spherical, free-flowing good, it can quickly fill the film, residual moisture centent and bulk specific gravity constant good and suitable for and isostatic molding products using a mold pressing than manual and mechanical granulation with a long life. Pressed out of the product consistency, smooth finish.
LX-Series electronic centrifugal spray granulation drying equipment has been widely used in ceramics, ferrite, powder metallurgy and other industries of the material particles centrifugal granulation special requirements, the requirements of the particle size can be adjusted to the optimum value of the distribution curve, distribution its main technical performance indicators are can reach the world advanced level, the basic realization of automatic control, the device is a key component of the design in a leading position in the same type of equipment.
Main Technical Parameter
| Model | LX-550 |
| Max. Water Evaporation Capacity (kg/h) | 550kg/h |
| Material | SUS304, SUS316L |
| Inlet Temperature (℃) | 230-350℃ |
| Out Temperature (℃) | 90-150℃ |
| Spray Type | High Speed Centrifugal Atomizer |
| Applications | Electronic material, ceramics, magnetic materials, new energy materials, new metal materials, chemicals, etc. |
| Atomization Rotated Speed (RPM) | 0-18000 |
| Spray Disc Diameter (mm) | 150-180 |
| Heating Method | Oil, natural gas, coal gas, liquefied gas, marsh gas, coalmine, steam, electricity, etc. |
Remarks: Water evaporation capacity depends on material property, solid content, inlet & outlet temperature.
Main Features
* Fast speed drying, high efficient.
* Can handle feed liquor in high concentration and high viscosity.
* Can get product in small content, good dispersibility, mobility and solution.
* Good degree of sphericity, excellent particle distribution, can adjust the particle diameter.
* Simplify production process, convenient operation control, can control production continuously.
FAQ
Q1: What equipment do we provide?
• Centrifugal spray granulator dryer.
• Pressure spray granulator dryer.
• Centrifugal spray dryer.
• Melting spray-cold air solidification granulator dryer.
• Spray dryers and granulators using non-aqueous liquid as the processing vehicle.
• Customized equipment to meet your special needs.
Q2: What our equipment can do?
• Can dry thermal sensitive materials and retain the powders' reactivity.
• Can produce spheres of solid, hollow, porous and microporous.
• Can produce spheres of mini and micro sizes.
