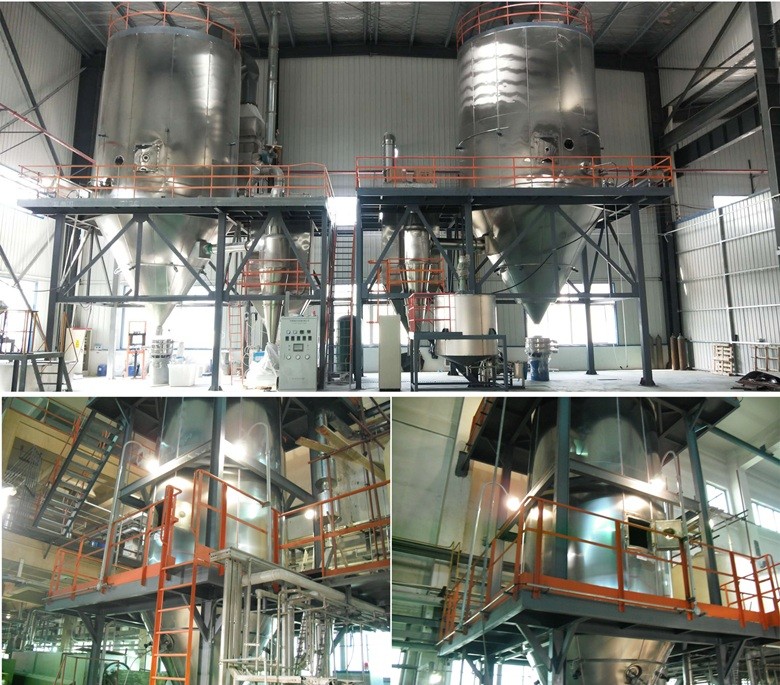

Cocurrent Flow Pressure Spray Dryer Granulation Atomizer Drier Granule 2000kg/H
| Place of Origin | China |
|---|---|
| Brand Name | TIANYANG |
| Model Number | LX-10 |
| Minimum Order Quantity | one |
| Delivery Time | 30 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Pressure Spray Granulation Dryer | Material | SUS304, SUS316L |
|---|---|---|---|
| Max. Water Evaporation Capacity | 12.5-2000kg/h | Heating Method | Electricity + Steam, Fuel Oil, Gas, Up To The User. |
| Applications | Ceramics, Magnetic Materials, New Energy Materials, New Metal Materials, Chemicals, Etc. | Warranty | 1 Year |
| Inlet Temperature (℃） | 140-550℃ | Out Temperature (℃） | 80-160℃ |
| Spray Type | Pressure Nozzle | Transmission Form Of Centrifugal Spray Head | Mechanical Transmission |
| Voltage | 110V220V/380V/440V/Customization | Electric Heating Maximum Power (KW) | Customized |
| Dimensions (L×W×H) Mm | Customized | Core Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine |
| Use Purpose | Lab Or Pilot | ||
| High Light | spray drying granulation,Cocurrent Flow Pressure Spray Dryer,Pressure Spray Dryer 2000kg/h |
||
Product Description
20.Cocurrent Flow Pressure Spray Granulation Dryer
Product Description
Description
The liquid or paste raw material is sprayed into mini liquid drops by pressed atomizer which draws assistance from pressure or diaphragm pump, and quickly drying through heat exchange. (10-90 sec) at last, the powder or small granule is finished.
Features
1. Drying speed is fast and suitable for drying thermal sensitivity material particularly.
2. The finished product is ball granule with uniform size. Its fluidity and solubility are good. The purity of product is high and its quality is good.
3. It applied scope is wide. According to the characteristics of raw material, it can use hot air to dry and can also use cool air to granulate. It has strong adaptability to raw materials.
4. Its operation is simple and stable; its control is simple and convenient, easy to realize automatic operation.
Note:
1 The amount of evaporated water is related to characteristic of raw material and temperature of evaporation. The parameters in table is calculated as 150-160°C
2 Customer could choose different drying way such as: current steam, countercurrent steam and powder returning drying to meet the requirement of product.
3 The flow chart sketch is just for show, customer could pick subassembly according to need.
Applications
pressure liquid dryer is applicable in foodstuff, pharmaceutical, chemical industries, dyestuff, ceramics, biochemical, plastic industries and so on.
YT series automatic high-efficiency, energy-saving and environmentally friendly cocurrent flow pressure spray granulation drying equipment is to input materials such as solution, suspension, emulsion, paste and paste through a high-pressure pump high-pressure input nozzle, spray mist droplets, and rise like a fountain. , and then the solid and water are separated and dried by heat exchange with hot air to obtain granular products. According to the process requirements, the pressure of the liquid pump and the size of the flow orifice can be adjusted to obtain the required spherical particles according to the size ratio, and can also obtain larger diameter particles.
Scope of Application
YT series co-current pressure spray granulation dryer has been used in electronic ceramics, precision ceramics, architectural ceramics, magnetic materials, new energy materials, metal materials, pharmaceuticals, biology, food, fine chemicals and other industries that have special particle requirements for materials. For pressure spray granulation, the particle size distribution requirements can be adjusted to an excellent distribution curve value, and its main technical performance and indicators can reach a relatively advanced level, realizing the automatic control of the overall equipment, energy saving and environmental protection.
Main Features
1. Fast drying speed;
2. The obtained product is spherical or apple-shaped spherical particles with uniform particle size, good fluidity and solubility. The product has higher purity and better quality;
3. Wide range of use, hot air drying, granulation, cold air granulation, spray crystallization, spray reaction, etc.
4. The operation is simple and convenient, the control is stable, and it is easy to realize automatic operation. The particle size, bulk density and water content of the product can be adjusted within a certain range.
5. According to different materials, the pressure spraying method of co-current (spraying from top to bottom) or counter-current (spraying from bottom to top) can be used.
Technical Parameter
| Model | YT-series Pressure Spray Drying Granulator | ||||||||||||||
| 12.5 | 25 | 50 | 65 | 100 | 150 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 | 2000 | |
| Max. Water Evaporation Capacity (kg/h) | 12.5 | 25 | 50 | 65 | 100 | 150 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 | 2000 |
| Inlet Temperature (℃) | 140-550℃ | ||||||||||||||
| Out Temperature (℃) | 80-160℃ | ||||||||||||||
| Spray Type | Pressure Nozzle | ||||||||||||||
| Heating Sources (Option) | Oil, natural gas, coal gas, liquefied gas, marsh gas, coalmine, steam, electricity, etc. | ||||||||||||||
| Remark: Moisture steam output is related with material 's property, solid content and hot air entrance-exit temperature | |||||||||||||||
