Powder Juice Milk Whey Protein Electronic Ceramics Spray Drying Equipment 50kg/H

Place of Origin China
Model Number LX-50
Minimum Order Quantity one
Delivery Time 30 Days
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Electronic Ceramic Spray Granulation Dryer Material SUS304, SUS316L
Max. Water Evaporation Capacity 50kg/h Heating Method Electricity + Steam, Fuel Oil, Gas, Up To The User.
Applications Ceramics, Magnetic Materials, New Energy Materials, New Metal Materials, Chemicals, Etc. Warranty 1 Year
Inlet Temperature (℃) 230-350℃ Out Temperature (℃) 90-150℃
Spray Type High Speed Centrifugal Atomizer Atomization Rotated Speed (RPM) 0-18000
Transmission Form Of Centrifugal Spray Head Mechanical Transmission Spray Disc Diameter (mm) 70-80
Voltage 110V220V/380V/440V/Customization Dry Powder Recovery ≥95%
Electric Heating Maximum Power (KW) Customized Dimensions (L×W×H) Mm Customized
Core Components Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine Use Purpose Lab Or Pilot
High Light

Electronic Ceramics Spray Drying Equipment


Ceramics Spray Drying Equipment 50kg/h


Ceramic Spray Dryer

Leave a Message
Product Description

15.Electronic Ceramics Centrifugal Granulation Spray Dryer

Product Description


Centrifugal spray dryer is the most widely used process in liquid shaping technology. It is suitable for producing powder and granules solid products from solution, emulsion, soliquoid, and pumpable paste materials. So when the particle size, final moisture, bulk density and granules shape meet the accurate standard, centrifugal spray drying is a ideal drying process.
Working principle:
After been filtered and heated the air enters into the air distributor on the top of the dryer .The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer/atomizer on the to of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Even in the very short time of contacting the heat air, the materials can be dried. The final products will be discharged continuously from the cyclones (in the bottom of the drying tower ) , and waste gas will be discharged by fan.

On the basis of the introduction of international advanced spray drying technology, Tianyang Drying cooperates closely with many domestic scientific research institutes to develop and produce various types of domestic and foreign leading centrifugal spray granulation drying equipment.

The LX-series high-speed electronic ceramics centrifugal granulation spray dryer produced by our company is suitable for small particle granulation of ceramics, metal materials, electronics, new energy, new materials, chemicals, dyes, food, medicine, biology and other materials. The spherical particle size can be adjusted arbitrarily according to the needs of customers (80 mesh ~ 300 mesh, 300 mesh ~ 500 mesh).

This electronic ceramic spray granulation drying equipment is characterized by simple, convenient and safe operation, good sphericity, good fluidity, good dispersion and good particle size distribution of the finished product. Its main technical performance and indicators have reached the world advanced level in the same industry.

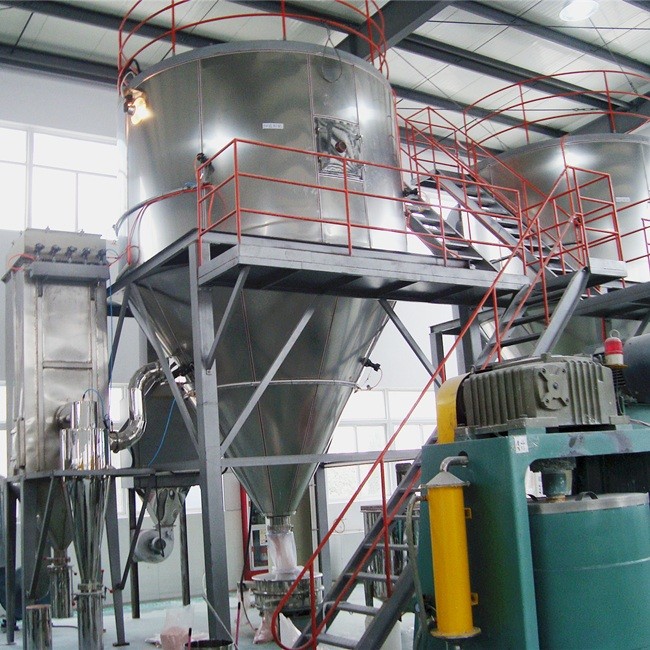

Powder Juice Milk Whey Protein Electronic Ceramics Spray Drying Equipment 50kg/H 0


Technical Parameter

Model LX-50
Max. Water Evaporation Capacity (kg/h) 50kg/h
Material SUS304, SUS316L
Inlet Temperature (℃) 230-350℃
Out Temperature (℃) 90-150℃
Spray Type High Speed Centrifugal Atomizer
Applications Ceramics, magnetic materials, new energy materials, new metal materials, chemicals, etc.
Atomization Rotated Speed (RPM) 0-18000
Spray Disc Diameter (mm) 70-80
Heating Method Oil, natural gas, coal gas, liquefied gas, marsh gas, coalmine, steam, electricity, etc.

Remarks: Water evaporation capacity depends on material property, solid content, inlet & outlet temperature.


Main Features

* Fast speed drying, high efficient.

* Can handle feed liquor in high concentration and high viscosity.

* Can get product in small content, good dispersibility, mobility and solution.

* Good degree of sphericity, excellent particle distribution, can adjust the particle diameter.

* Simplify production process, convenient operation control, can control production continuously.


Main Machine Parts

1. Spray Disc Diameter

This centrifugal plate is specially designed and manufactured for ceramic and electronic industries, which is the best choice for granulation of materials, and has features of wearing-proof and easy assembly and disassembly.


2. Centrifugal Granulated Diffuser

This centrifugal granulated diffuser is the extremely fundamental central part of the drying machines. It can granulate materials into better ball-like products (100 mesh to 350 mesh) with good fluidity by means of arbitrarily adjustment. It has advantages of reasonable design, convenient operation and maintenance.


3. Particles of Electronic Ceramic Spray Dryer

This electronic ceramic spray granulation drying machine is that it can produce spherical products with better fluidity and fine particle distribution, and adjust the average particle size of products arbitrarily (100 to 350 meshes).
