Laboratory Spray Dryer Milk Powder Spray Drying Process Food Preservation 5kgh
| Place of Origin | China |
|---|---|
| Brand Name | TIANYANG |
| Model Number | LT-5 |
| Minimum Order Quantity | one |
| Delivery Time | 30 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Laboratory Spray Dryer | Material | SUS304, SUS316L, Ti |
|---|---|---|---|
| Max. Water Evaporation Capacity | 5kg/h | Heating Method | Electric Heating |
| Applications | Chemicals Processing, Food Processing | Warranty | One Year |
| Inlet Temperature (℃） | 140-350 ℃ | Out Temperature (℃） | 80-90 ℃ |
| Transmission Form Of Centrifugal Spray Head | Compressed Air Drive | Atomization Rotated Speed (RPM) | 25000rpm |
| Spray Disc Diameter (mm) | 50 | Electric Heating Maximum Power (KW) | 18Kw |
| Dimensions (L×W×H) Mm | 1601*1500*1801 | Dry Powder Recovery | ≥95% |
| Drying Time | According To Customer Requirements. | Voltage | 110V220V/380V/440V/Customization |
| Core Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine | Use Purpose | Lab Or Pilot |
| High Light | milk powder spray drying process,spray drying food preservation,spray drying in food |
||
Product Description

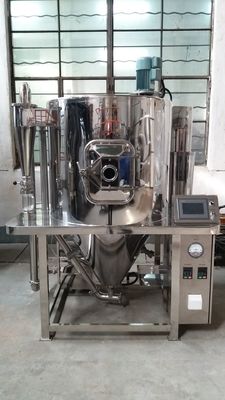

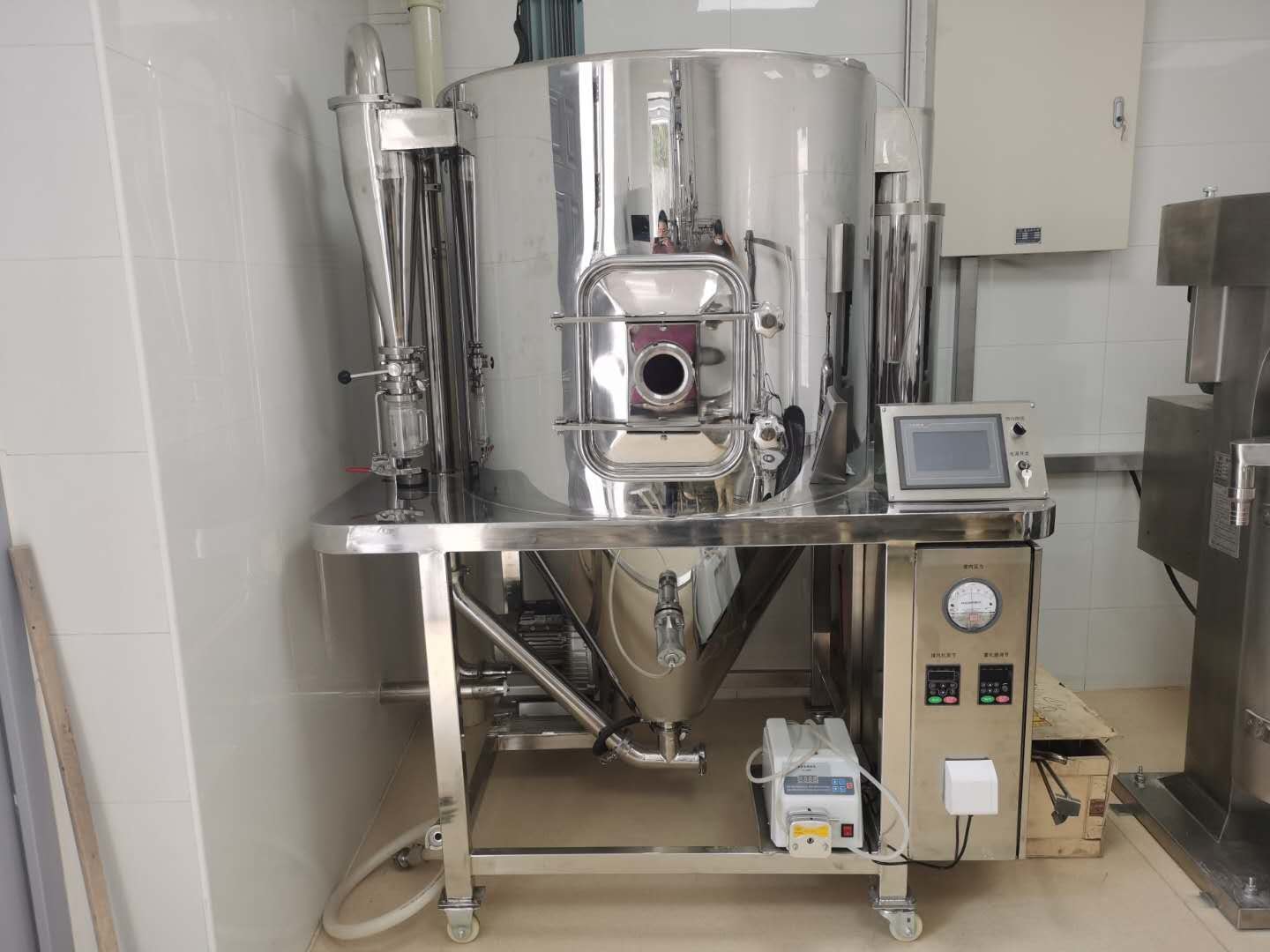

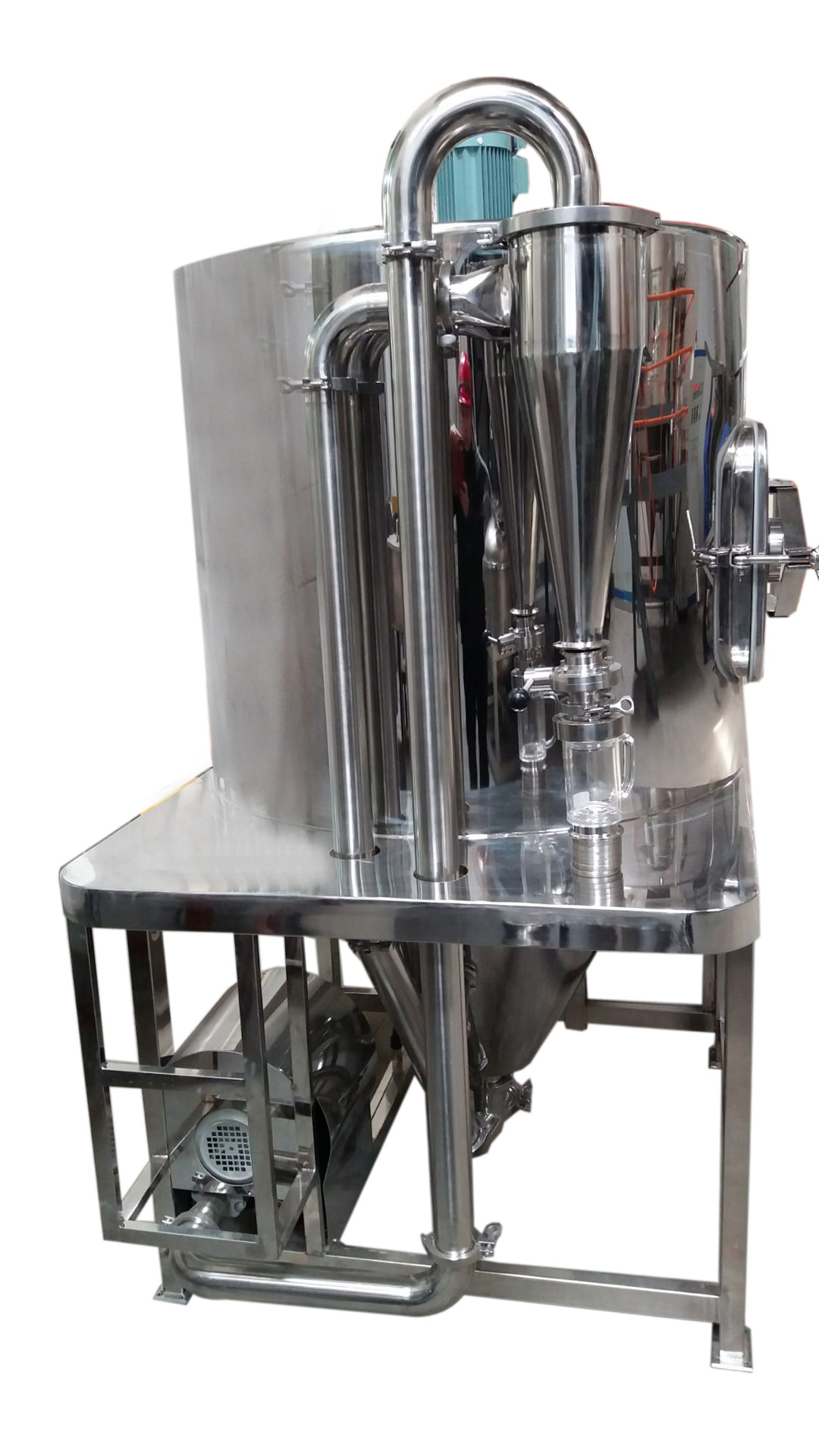

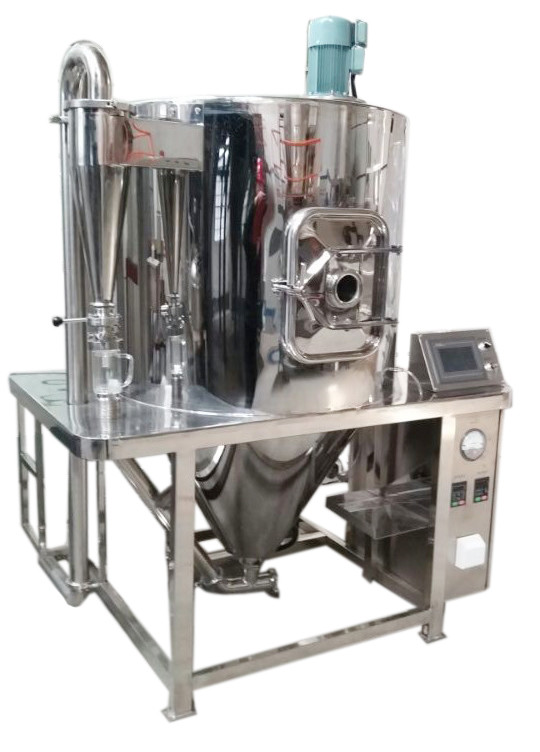

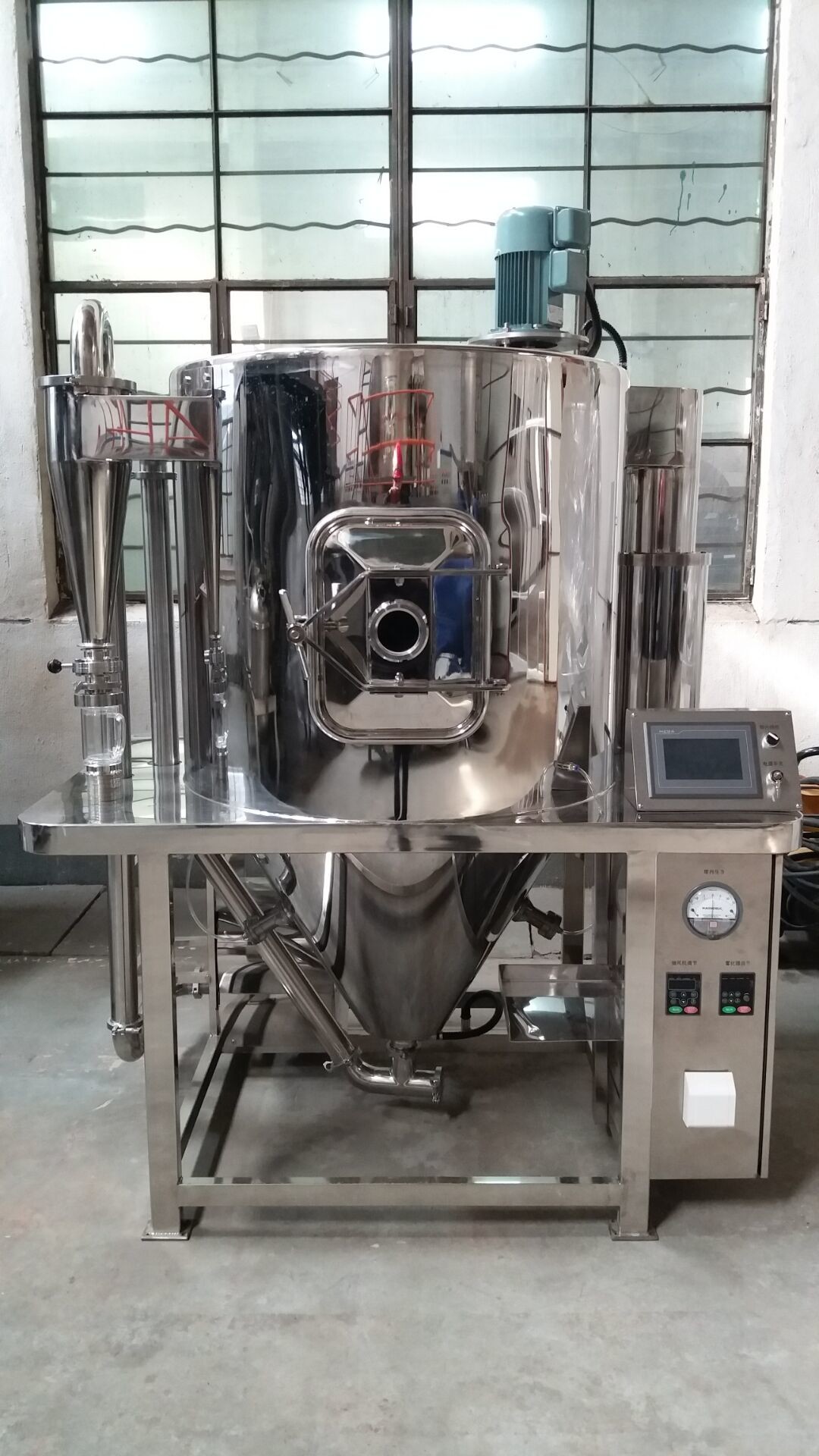

5kgh Laboratory Spray Dryer
Product Description
Application:
Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Spray dryer is a kind of continuous atmospheric dryer. Use pneumatic or electric atomization device to make liquid high-speed centrifugal spray as fog droplet, make these fog droplet contact with the hot air in the drying chamber and instantaneous drying.
After fresh air is filtered and heated, it enters into the air distributor which on the top of the drier. The hot air in spiral form equably enters into the drying room.When liquid raw material are passed through the high-speed centrifugal sprayer on the top of the tower, it will be rotated and sprayed into the extreme slim mist liquid beads.
Raw material can be dried to the final products instantly while it contact with the heatedair.Finished products are discharged continuously from bottom of the drying tower and cyclones segregator. Wasted air is discharged from blower.
LT-5 Laboratory scale spray dryer is widely used for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid.

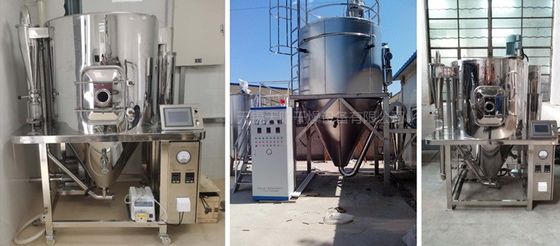

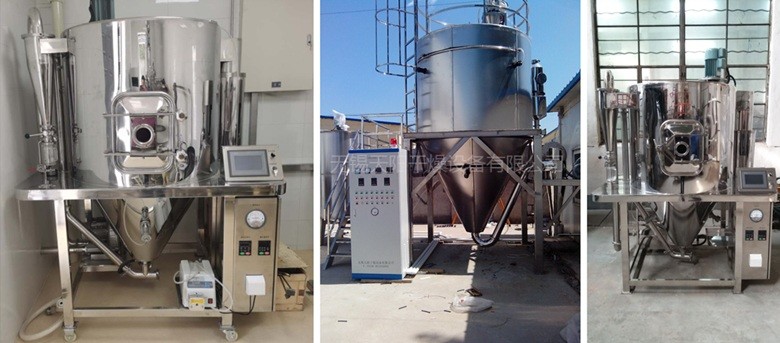

LT series 5KG/H laboratory spray dryer has been used in enterprises, colleges and universities, scientific research institutions and other industries. According to the characteristics of different products of users, it can explore the ideal process conditions of its spray drying through experiments, which has laid a solid foundation for the industrial production of products.
Technical Specifications of Laboratory Spray Drying Equipment
| Model | LT-5 |
| Material | SUS304, SUS316L, Ti |
| Inlet Temperature (℃) | 140-350℃ |
| Out Temperature (℃) | 80-90℃ |
| Max. Water Evaporation Capacity (kg/h) | 5kg |
| Applications | Chemicals processing, food processing, etc. |
| Transmission Form of Centrifugal Spray Head | Compressed air drive |
| Atomization Rotated Speed (RPM) | 25000 |
| Spray Disc Diameter (mm) | 50 |
| Heating Method | Electric heating |
| Electric Heating Maximum Power (KW) | 18Kw |
| Dimensions (L×W×H) mm | 1601*1500*1801 |
| Dry Powder Recovery | ≥95% |
Key Features
* Short drying time, suitable especially for thermal sensitive material and high viscosity material like medical concentrate.
* Easy operation, convenient adjusting, easy to disassemble and clean.
* Various particle size available by adjusting the spray rpm, spray disc, liquid concentrate and air etc.
* Can get various final moisture by adjusting the spray volume and outlet air temp.
* Multiple dust collector used to ensure no material loss.
Main Technical Design
1. Centrifugal atomizing or pressure atomizing
2. Pre Middle air filter system
3. Heating method with electric, gas, steam, oil
4. Drying Method:
* High speed centrifugal spray drying
* High speed centrifugal spray granulation drying
* Pressure spray granulation drying
* Flash drying
* Belt drying
5. Collection and Dedusting:
* Cyclone collection+ bag dedusting
* Cyclone collection+ Water spray dedusting
* Tower collection + Cylone dedusting+bag dedusting
* Tower collection + Cylone dedusting+water spray dedusting
* Cyclone + buffering sino collection
* Cyclone +refrigeration dehumidifying collection
* Bag collection
6. Control System: PLC programme control or touch screen control
