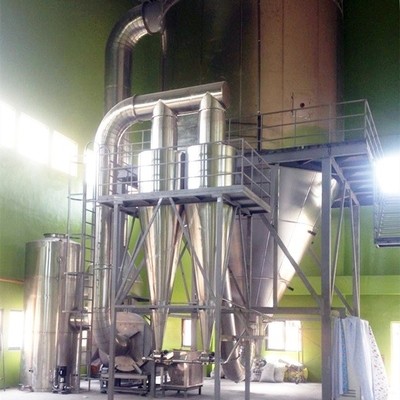

Small Milk Powder Making Plant Machine Manufacturing 500kg/H
| Place of Origin | China |
|---|---|
| Brand Name | TIANYANG |
| Model Number | LT-500 |
| Minimum Order Quantity | one |
| Delivery Time | 30 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Fermented Liquid Spray Dryer | Material | SUS304, SUS316L, Ti |
|---|---|---|---|
| Max. Water Evaporation Capacity | 500kg/h 1000kg/h | Warranty | One Year |
| Inlet Temperature (℃） | 140-350 ℃ | Out Temperature (℃） | 80-90 ℃ |
| Applications | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Etc. | Transmission Form Of Centrifugal Spray Head | Mechanical Transmission |
| Atomization Rotated Speed (RPM) | 12700 | Spray Disc Diameter (mm) | 180 |
| Heating Method | Electricity + Steam, Fuel Oil, Gas, Up To The User. | Electric Heating Maximum Power (KW) | Customized |
| Spray Type | High Speed Centrifugal Atomizer | Dimensions (L×W×H) Mm | Customized |
| Drying Time | According To Customer Requirements. | Dry Powder Recovery | ≥95% |
| Voltage | 110V220V/380V/440V/Customization | Core Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine |
| High Light | small milk powder making machine 500kg/h,making milk powder machine,milk powder manufacturing machine 500kg/h |
||
Product Description
11.High Speed Fermented Liquid Centrifugal Spray Dryer
Product Description
Rotary Atomizer Type Spray Dryer Working Principle
After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.
LT Series economic high performance high speed fermented liquid centrifugal spray drying equipment is a new spray drying machine researched and developed successfully by our company according to china's actual conditions after absorbing and digesting internationally advanced technology. It has features such as reasonable structure, stable performance, convenient operation, no dead corners, and no exposed bolts.
LT-1000 high speed fermented liquid centrifugal spray dryer adopts PLC automatic control. All operations are completed automatically according to the process parameters set by users. It fully meets the requirements for fermented liquid production in GMP.
Technical Specifications of Fermented Liquid Spray Dryer
| Model | LT-1000 |
| Max. Water Evaporation Capacity (kg/h) | 1000kg/h |
| Material | SUS304, SUS316L |
| Inlet Temperature (℃) | 140-350℃ |
| Out Temperature (℃) | 80-90℃ |
| Spray Type | High Speed Centrifugal Atomizer |
| Applications | Medicine processing, chemicals processing, plastics processing, food processing, etc. |
| Transmission Form of Centrifugal Spray Head | Mechanical transmission |
| Atomization Rotated Speed (RPM) | 12700 |
| Spray Disc Diameter (mm) | 180 |
| Heating Method | Electricity + steam, fuel oil, gas, up to the user. |
| Electric Heating Maximum Power (KW) | Customized |
| Dimensions (L×W×H) mm | Customized |
| Dry Powder Recovery | ≥95% |
Main Features
1. Different types of solution, suspension, emulsion and cream paste material can be dry for a one-time production.
2. The fog moment and fog droplet of spray-drying can be slightly adjusted.
3. The hot air has been reasonable allocation, and the ceiling and walls sticky situation has been eliminated.
4. It is suitable for the drying of thermo-sensitive and non thermo-sensitive material at the same time. The product particles are smaller than pressure spray dryer.
5. Simplify the production process, easy to use, good liquidity and instant of the product.
Drying Material
* Inorganic: Aluminum nitride, zirconia, potassium fluoride, bentonite, kaolin, barium sulfate, lead sulfate, sodium aluminum, chromium oxide, titanium dioxide.
* Macromolecule Polymers: Urea-formaldehyde resin, PVC.
* Dyes: Dispersol red FB, reactive dyes, etc.
* Chemical Agents: Silica dioxide, diatomite, sodium silicate, wood calcium, sodium ligninsulfonate, naphthalene series water reducer.
* Pesticide: Carbendazol chloride wettable power.
* Food and Feed Additives: casein peptide phosphate, potassium sorbate, fish serum.
* Fertilizer: Potassium humate, sodium humate.
