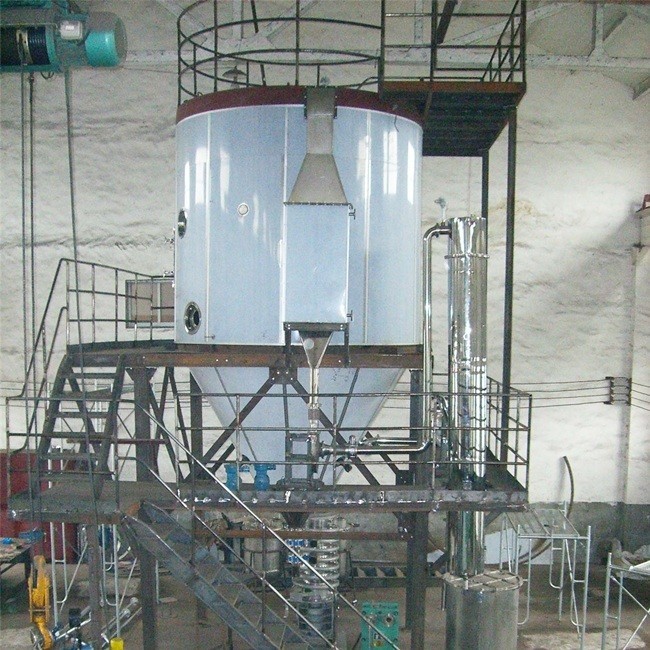

Medicine Milk Powder Spray Dryer High Speed Centrifugal Spray Dryer Pharmaceutical SUS316L
| Place of Origin | China |
|---|---|
| Brand Name | TIANYANG |
| Model Number | LT-25 |
| Minimum Order Quantity | one |
| Delivery Time | 30 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Milk Powder Spray Dryer | Material | SUS304, SUS316L, Ti |
|---|---|---|---|
| Max. Water Evaporation Capacity | 50kg/h | Warranty | One Year |
| Inlet Temperature (℃） | 140-350℃ | Out Temperature (℃） | 80-90℃ |
| Spray Type | High Speed Centrifugal Atomizer | Applications | Dairy Products Processing, Chemicals Processing, Plastics Processing, Food Processing, Etc. |
| Transmission Form Of Centrifugal Spray Head | Compressed Air Drive | Atomization Rotated Speed (RPM) | 21500 |
| Spray Disc Diameter (mm) | 108 | Heating Method | Electricity + Steam, Fuel Oil, Gas, Up To The User. |
| Electric Heating Maximum Power (KW) | 81 | Dimensions (L×W×H) M | 3.7×3.2×5.1m |
| Dry Powder Recovery | ≥95% | Voltage | 110V220V/380V/440V/Customization |
| Core Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine | Use Purpose | Lab Or Pilot |
| High Light | Medicine High Speed Centrifugal Spray Dryer,High Speed Centrifugal Spray Dryer SUS316L,pharmaceutical spray dryer |
||
Product Description
7.Centrifugal Spray Dryer for Milk Powder
Product Description
LPG instant coffee milk powder spray dryer making machine is a kind of continuous atmospheric dryer.Use pneumatic or electric atomization device to make liquid high-speed centrifugal spray as fog droplet, make these fog droplet contact with the hot air in the drying chamber and instantaneous drying.
Characteristic
1.Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
LT-Series high speed centrifugal spray drying machine is suitable for various fields where the production of a powder is required.
LT-50KG high speed centrifugal spray dryer has successfully processed in the following areas: milk powder, dairy products, egg products, beverage, flavours and colourings, plant and vegetable extracts, pharmaceuticals, perfumes, blood, ceramics and superconductors biochemicals, dyestuffs, soaps and detergents, foodstuffs, adehesives, oxides, textiles and many others.
LT-50 milk spray dryer machine adopts PLC automatic control. All operations are completed automatically according to the process parameters set by users. It fully meets the requirements for milk powder processing production in GMP.
Technical Specifications of Spray Dryer for Milk Powder
| Model | LT-50 |
| Max. Water Evaporation Capacity (kg/h) | 50kg/h |
| Material | SUS304, SUS316L, Ti |
| Inlet Temperature (℃) | 140-350℃ |
| Out Temperature (℃) | 80-90℃ |
| Spray Type | High Speed Centrifugal Atomizer |
| Applications | Dairy Products processing, chemicals processing, plastics processing, food processing, etc. |
| Transmission Form of Centrifugal Spray Head | Compressed air drive |
| Atomization Rotated Speed (RPM) | 21500 |
| Spray Disc Diameter (mm) | 108 |
| Heating Method | Electricity + steam, fuel oil, gas, up to the user. |
| Electric Heating Maximum Power (KW) | 81 |
| Dimensions (L×W×H) m | 3.7×3.2×5.1m |
| Dry Powder Recovery | ≥95% |
Features and Benefits
* Special protection function,the fan will not startand the heater will not start
* Built-in imported oil-free air compressor with noise less than 50db.
* Equipped with airinlet filter to ensure powder purity.
* Dried product has uniform particle sizemorethan95% of the dry powder is at the same particle size.
