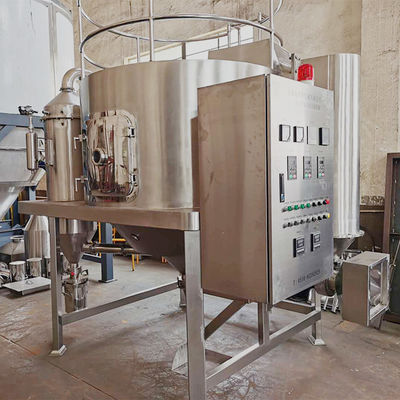

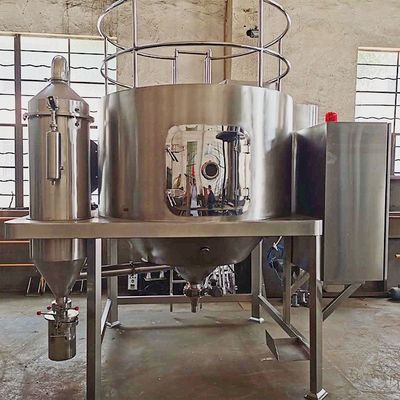

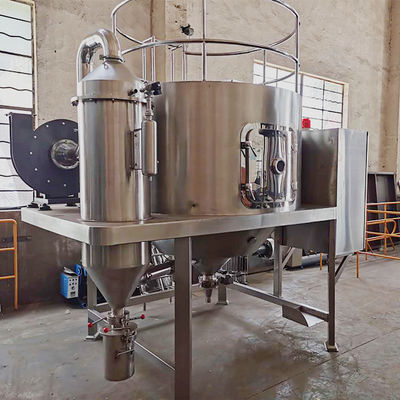

Large Lab Scale Spray Dryer Machine Granulation High Speed Centrifugal Milk Powder 5kg/H
| Place of Origin | China |
|---|---|
| Brand Name | TIANYANG |
| Model Number | LX-5 |
| Minimum Order Quantity | one |
| Delivery Time | 30 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Lab Centrifugal Spray Granulation Dryer | Material | SUS304, SUS316L |
|---|---|---|---|
| Max. Water Evaporation Capacity | 5kg/h | Heating Method | Electricity + Steam, Fuel Oil, Gas, Up To The User. Applications: Ceramics, Magnetic Materials, New Energy Materials, New Metal Materials, Chemicals, Etc. |
| Applications | Ceramics, Magnetic Materials, New Energy Materials, New Metal Materials, Chemicals, Etc. | Warranty | 1 Year |
| Inlet Temperature (℃） | 230-350℃ | Out Temperature (℃） | 90-150℃ |
| Spray Type | High Speed Centrifugal Atomizer | Atomization Rotated Speed (RPM) | 0-18000 |
| Transmission Form Of Centrifugal Spray Head | Mechanical Transmission | Spray Disc Diameter (mm) | 55-65 |
| Voltage | 110V220V/380V/440V/Customization | Electric Heating Maximum Power (KW) | Customized |
| Dimensions (L×W×H) Mm | Customized | Core Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine |
| Use Purpose | Lab Or Pilot | ||
| High Light | large scale spray dryer 5kg/h,Lab Scale Spray Dryer machine 5kg/h,laboratory scale spray dryer |
||
Product Description
18.Laboratory Centrifugal Spray Granulation Dryer
Product Description
Description:
Spray drying process is the widest used in the liquid forming process and in drying industry. The drying technology is most suitable for powder, particle products from materials, such as,solution, emulsion, SC and pumpable paste states material. For this reason, when the particle size and distribution of the final product, their residual water contents, the stacking density and particle shape must meet the precision standard, spray drying process is one of the most desired processes.
Feature:
High drying speed atomizes material into liquid, the surface of the material increase greatly. It only takes few seconds to evaporate 95-98% water in a hot air flow. This is especially suitable for drying the heat sensitive materials. The final product has features of good uniformity, flow ability, and solubility. It is in a high purity and quality as well. The production procedure is simple,operation and control are easy. For material contains 40-60% water(special material can contain more than 90%), it can be dried into powder or particles once a time. After the drying process, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters,losseness and water contents can be adjusted through changing the operation condition whining a certain range. It is very convenient to carry out control and management.
Application:
Food and plants: Oats, chicken juice, coffee, instant tea, seasoning spices meat, protein, soybeans, peanut protein, hydrolysates and so on.
Carbohydrates: Corn steep liquor, corn starch, glucose, pectin, maltose, potassium sorbate and the like.
Chemical industry: Battery raw materials, basic dye pigments, dye intermediates, fertilizer, formaldehyde silicic acid, catalysts, agents, amino acids, silica and so on.
Ceramics: Alumina, ceramic tile materials, magnesium oxide, talcum powder and so on.
LX-5KG Laboratory centrifugal spray granulation dryer is designed for colleges and universities, research institutes and enterprises of product research and development and small batch production, its characteristic is running low noise, fast drying speed, low temperature liquid is heated, operation simple, the spray drying equipment is a kind of continuous atmospheric dryer.
Using special lab centrifugal spray granulation drying equipment to spray liquid into spherical droplets, make its contact with the hot air drying. Used for drying of some heat-sensitive liquid, suspending liquid and viscous liquid, is the most solid extraction device best.
Technical Parameter
| Model | LX-5 |
| Max. Water Evaporation Capacity (kg/h) | 5kg/h |
| Material | SUS304, SUS316L |
| Inlet Temperature (℃) | 230-350℃ |
| Out Temperature (℃) | 90-150℃ |
| Spray Type | High Speed Centrifugal Atomizer |
| Applications | Electronic material, ceramics, magnetic materials, new energy materials, new metal materials, chemicals, etc. |
| Atomization Rotated Speed (RPM) | 0-18000 |
| Spray Disc Diameter (mm) | 55-65 |
| Heating Method | Oil, natural gas, coal gas, liquefied gas, marsh gas, coalmine, steam, electricity, etc. |
Remarks: Water evaporation capacity depends on material property, solid content, inlet & outlet temperature.
Main Feature
* Fast drying speed and high efficiency;
* It can handle high concentration and high viscosity liquid;
* Products with less fine powder content and good dispersibility, fluidity and solubility can be obtained;
* The product has good sphericity and excellent particle size distribution, and the particle size of the product can be adjusted arbitrarily;
* The production process is simplified, automatic control, convenient operation, suitable for continuous production control.
