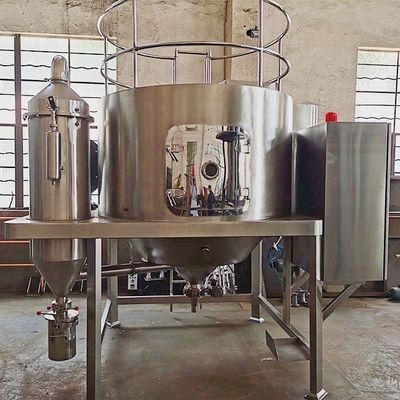

Mini Small Spray Dryer Equipment 2 Litre 3l 5 Liter 5kg 10kg 10l 15l 15l/H
| Place of Origin | China |
|---|---|
| Brand Name | TIANYANG |
| Model Number | LX-5 |
| Minimum Order Quantity | one |
| Delivery Time | 30 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Lab Centrifugal Spray Granulation Dryer | Material | SUS304, SUS316L |
|---|---|---|---|
| Max. Water Evaporation Capacity | 5kg/h | Heating Method | Electricity + Steam, Fuel Oil, Gas, Up To The User. Applications: Ceramics, Magnetic Materials, New Energy Materials, New Metal Materials, Chemicals, Etc. |
| Applications | Ceramics, Magnetic Materials, New Energy Materials, New Metal Materials, Chemicals, Etc. | Warranty | 1 Year |
| Inlet Temperature (℃） | 230-350℃ | Out Temperature (℃） | 90-150℃ |
| Spray Type | High Speed Centrifugal Atomizer | Atomization Rotated Speed (RPM) | 0-18000 |
| Transmission Form Of Centrifugal Spray Head | Mechanical Transmission | Spray Disc Diameter (mm) | 55-65 |
| Voltage | 110V220V/380V/440V/Customization | Electric Heating Maximum Power (KW) | Customized |
| Dimensions (L×W×H) Mm | Customized | Core Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine |
| Use Purpose | Lab Or Pilot | ||
| High Light | mini spray dryer,mini spray dryer,spray dryer for lab |
||
Product Description
18.Laboratory Centrifugal Spray Granulation Dryer
Product Description
Spray atomizer / industrial spray nozzle drying technology is shaping and drying of the most widely used industrial process. Ideal for the solution, emulsion, suspension and paste liquid plastic raw materials generated in the powdery, granular or massive solid products. Therefore, when the particle size distribution of the finished product, residual moisture content, bulk density and particle shape must meet precise standards. Spray drying is a very good process.
Working Principle
The air is filtered and heated into the top of the dryer air distributor, hot air into the spiral evenly into the drying chamber. The material liquid is sprayed into a fine atomized liquid droplet through the high-speed centrifugal nebulizer at the top of the tower body, and can be contacted with the hot air in a very short time and can be dried into finished products. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is drained by the draft fan.
LX-5KG Laboratory centrifugal spray granulation dryer is designed for colleges and universities, research institutes and enterprises of product research and development and small batch production, its characteristic is running low noise, fast drying speed, low temperature liquid is heated, operation simple, the spray drying equipment is a kind of continuous atmospheric dryer.
Using special lab centrifugal spray granulation drying equipment to spray liquid into spherical droplets, make its contact with the hot air drying. Used for drying of some heat-sensitive liquid, suspending liquid and viscous liquid, is the most solid extraction device best.
Technical Parameter
| Model | LX-5 |
| Max. Water Evaporation Capacity (kg/h) | 5kg/h |
| Material | SUS304, SUS316L |
| Inlet Temperature (℃) | 230-350℃ |
| Out Temperature (℃) | 90-150℃ |
| Spray Type | High Speed Centrifugal Atomizer |
| Applications | Electronic material, ceramics, magnetic materials, new energy materials, new metal materials, chemicals, etc. |
| Atomization Rotated Speed (RPM) | 0-18000 |
| Spray Disc Diameter (mm) | 55-65 |
| Heating Method | Oil, natural gas, coal gas, liquefied gas, marsh gas, coalmine, steam, electricity, etc. |
Remarks: Water evaporation capacity depends on material property, solid content, inlet & outlet temperature.
Main Feature
* Fast drying speed and high efficiency;
* It can handle high concentration and high viscosity liquid;
* Products with less fine powder content and good dispersibility, fluidity and solubility can be obtained;
* The product has good sphericity and excellent particle size distribution, and the particle size of the product can be adjusted arbitrarily;
* The production process is simplified, automatic control, convenient operation, suitable for continuous production control.
