Wastewater Pilot Lab Scale Spray Dryer Lab Mini Equipment Medicine Extract
| Place of Origin | China |
|---|---|
| Brand Name | TIANYANG |
| Model Number | LT-5 |
| Minimum Order Quantity | one |
| Delivery Time | 30 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Laboratory Spray Dryer | Material | SUS304, SUS316L, Ti |
|---|---|---|---|
| Max. Water Evaporation Capacity | 5kg/h | Heating Method | Electric Heating |
| Applications | Chemicals Processing, Food Processing | Warranty | One Year |
| Inlet Temperature (℃） | 140-350 ℃ | Out Temperature (℃） | 80-90 ℃ |
| Transmission Form Of Centrifugal Spray Head | Compressed Air Drive | Atomization Rotated Speed (RPM) | 25000rpm |
| Spray Disc Diameter (mm) | 50 | Electric Heating Maximum Power (KW) | 18Kw |
| Dimensions (L×W×H) Mm | 1601*1500*1801 | Dry Powder Recovery | ≥95% |
| Drying Time | According To Customer Requirements. | Voltage | 110V220V/380V/440V/Customization |
| Core Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine | Use Purpose | Lab Or Pilot |
| High Light | wastewater spray dryer,pilot scale spray dryer,laboratory spray dryer |
||
Product Description

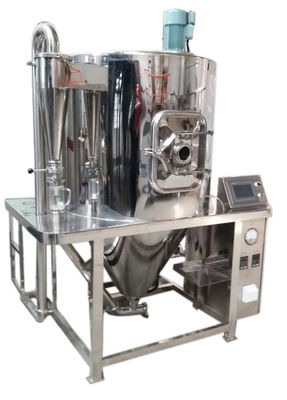

5kgh Laboratory Spray Dryer
Product Description
Laboratory table top spray dryer is the latest type of TOPTION which adopts advanced international technology and spare parts.
Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.
Futures of centrifugal spray dryer for industrial:
At a high speed of drying, after the spraying of the material liquid, the surface area of the material will be increased greatly. In the hot-air flow, 95%~98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.
This is especially suitable for drying the heat sensitive materials. Its final products own the good uniformity, mobility, dissolving capacity. And the final products are high in their purity and good in their quality. The production procedures are simple and the operation and control are easy. The liquid with the moisture contents 40~60% (for special materials, the contents may reach 90%.) can be dried into the powder or particle products once a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out the control and management.
LT-5 Laboratory scale spray dryer is widely used for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid.
LT series 5KG/H laboratory spray dryer has been used in enterprises, colleges and universities, scientific research institutions and other industries. According to the characteristics of different products of users, it can explore the ideal process conditions of its spray drying through experiments, which has laid a solid foundation for the industrial production of products.
Technical Specifications of Laboratory Spray Drying Equipment
| Model | LT-5 |
| Material | SUS304, SUS316L, Ti |
| Inlet Temperature (℃) | 140-350℃ |
| Out Temperature (℃) | 80-90℃ |
| Max. Water Evaporation Capacity (kg/h) | 5kg |
| Applications | Chemicals processing, food processing, etc. |
| Transmission Form of Centrifugal Spray Head | Compressed air drive |
| Atomization Rotated Speed (RPM) | 25000 |
| Spray Disc Diameter (mm) | 50 |
| Heating Method | Electric heating |
| Electric Heating Maximum Power (KW) | 18Kw |
| Dimensions (L×W×H) mm | 1601*1500*1801 |
| Dry Powder Recovery | ≥95% |
Key Features
* Short drying time, suitable especially for thermal sensitive material and high viscosity material like medical concentrate.
* Easy operation, convenient adjusting, easy to disassemble and clean.
* Various particle size available by adjusting the spray rpm, spray disc, liquid concentrate and air etc.
* Can get various final moisture by adjusting the spray volume and outlet air temp.
* Multiple dust collector used to ensure no material loss.
Main Technical Design
1. Centrifugal atomizing or pressure atomizing
2. Pre Middle air filter system
3. Heating method with electric, gas, steam, oil
4. Drying Method:
* High speed centrifugal spray drying
* High speed centrifugal spray granulation drying
* Pressure spray granulation drying
* Flash drying
* Belt drying
5. Collection and Dedusting:
* Cyclone collection+ bag dedusting
* Cyclone collection+ Water spray dedusting
* Tower collection + Cylone dedusting+bag dedusting
* Tower collection + Cylone dedusting+water spray dedusting
* Cyclone + buffering sino collection
* Cyclone +refrigeration dehumidifying collection
* Bag collection
6. Control System: PLC programme control or touch screen control
