LPG 5 Rotary Atomizer Lab Spray Dryer Pilot Plant Powder Small Scale Spray Dryer 8nv
| Place of Origin | China |
|---|---|
| Brand Name | TIANYANG |
| Model Number | LT-5 |
| Minimum Order Quantity | one |
| Delivery Time | 30 Days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Laboratory Spray Dryer | Material | SUS304, SUS316L, Ti |
|---|---|---|---|
| Max. Water Evaporation Capacity | 5kg/h | Heating Method | Electric Heating |
| Applications | Chemicals Processing, Food Processing | Warranty | One Year |
| Inlet Temperature (℃） | 140-350 ℃ | Out Temperature (℃） | 80-90 ℃ |
| Transmission Form Of Centrifugal Spray Head | Compressed Air Drive | Atomization Rotated Speed (RPM) | 25000rpm |
| Spray Disc Diameter (mm) | 50 | Electric Heating Maximum Power (KW) | 18Kw |
| Dimensions (L×W×H) Mm | 1601*1500*1801 | Dry Powder Recovery | ≥95% |
| Drying Time | According To Customer Requirements. | Voltage | 110V220V/380V/440V/Customization |
| Core Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine | Use Purpose | Lab Or Pilot |
| High Light | Rotary atomizer lab spray dryer,spray drying pilot plant,small spray dryer |
||
Product Description

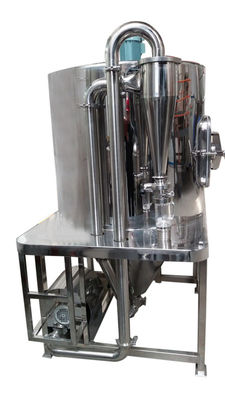

5kgh Laboratory Spray Dryer
Product Description
LT-5 Laboratory scale spray dryer is widely used for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid.
LT series 5KG/H laboratory spray dryer has been used in enterprises, colleges and universities, scientific research institutions and other industries. According to the characteristics of different products of users, it can explore the ideal process conditions of its spray drying through experiments, which has laid a solid foundation for the industrial production of products.
Technical Specifications of Laboratory Spray Drying Equipment
| Model | LT-5 |
| Material | SUS304, SUS316L, Ti |
| Inlet Temperature (℃) | 140-350℃ |
| Out Temperature (℃) | 80-90℃ |
| Max. Water Evaporation Capacity (kg/h) | 5kg |
| Applications | Chemicals processing, food processing, etc. |
| Transmission Form of Centrifugal Spray Head | Compressed air drive |
| Atomization Rotated Speed (RPM) | 25000 |
| Spray Disc Diameter (mm) | 50 |
| Heating Method | Electric heating |
| Electric Heating Maximum Power (KW) | 18Kw |
| Dimensions (L×W×H) mm | 1601*1500*1801 |
| Dry Powder Recovery | ≥95% |
Key Features
* Short drying time, suitable especially for thermal sensitive material and high viscosity material like medical concentrate.
* Easy operation, convenient adjusting, easy to disassemble and clean.
* Various particle size available by adjusting the spray rpm, spray disc, liquid concentrate and air etc.
* Can get various final moisture by adjusting the spray volume and outlet air temp.
* Multiple dust collector used to ensure no material loss.
Main Technical Design
1. Centrifugal atomizing or pressure atomizing
2. Pre Middle air filter system
3. Heating method with electric, gas, steam, oil
4. Drying Method:
* High speed centrifugal spray drying
* High speed centrifugal spray granulation drying
* Pressure spray granulation drying
* Flash drying
* Belt drying
5. Collection and Dedusting:
* Cyclone collection+ bag dedusting
* Cyclone collection+ Water spray dedusting
* Tower collection + Cylone dedusting+bag dedusting
* Tower collection + Cylone dedusting+water spray dedusting
* Cyclone + buffering sino collection
* Cyclone +refrigeration dehumidifying collection
* Bag collection
6. Control System: PLC programme control or touch screen control
